China factory high efficiency automatic silver aluminum foil coffee container punching machine aluminum plate making machine

1 Set
MOQ
$82,500.00(1 - 2 Sets) $77,000.00(>=3 Sets)
価格
China factory high efficiency automatic silver aluminum foil coffee container punching machine aluminum plate making machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
CNC or Not: CNC, CNC
Condition: New
Machine Type: Punching Machine
Slide Stroke (mm): 180-280
Power Source: Mechanical, Mechanical
Voltage: 220-380V, 380V/50HZ
Dimension(L*W*H): 7100*3500*3600
Motor Power (kW): 15
Model Number: SEAC-80AS-5
Weight (T): 11.8
Key Selling Points: Automatic
Warranty: 2 years
Applicable Industries: Manufacturing Plant
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: PLC
After-sales Service Provided: after-sales service
Weight: 11800KG
証明: CE ISO
Advantage: High Efficiency
PLC: Mitsubishi Japan
Motor: SIEMENS
After Warranty Service: Video technical support
基本情報
証明: CE ISO
Model Number: SEAC-80AS-5
お支払配送条件
Packaging Details: Equipments : Fixing on Steel pallett - Mould : in wooden box with multiwall bag
製品の説明
Products Description

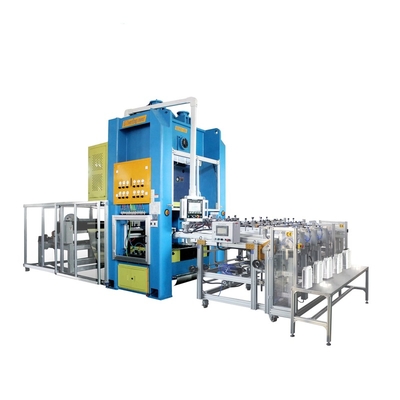

Complete Automatic Aluminium Foil Container Making Machine
Model: SEAC-80/130AS (Four Cavities or Six Cavities Capacity !)
Units: Automatic Feeder+Automatic 80Ton H Type Press+Cavities Mould+Auto Stacker+Scrap Sucker & Auto Presser.
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size
products. Lower power requested than other old model machines.

Specification:
1. Raw material: Aluminum foil; Thickness: 0.030mm ~0.280mm;
Alloy: 8011,8006,3003,3005; Temper O to H24;
2. Good Japan's Inverter, PLC and 10inch Touch Screen control system;
3.Max. width of Aluminum foil: 1220mm;
4.Max. diameter of Aluminum foil: 1000mm;
5. Core diameter of Aluminum foil: 76mm(152mm as Optional );
6. Working speed: 40-75 times/min;
7. Total Power: 14kw+2kw+2.5kw+3kw;
8. Compressed air needed: 0.5- 0.8 Mpa, 0.4m3/min;
9. Install dimension: 7100*2600*3600mm;

Technical Data:
Max. mould size: 1480*1000*500mm;
Slide block stroke:150-260mm ; (Offer Stroke adjustable system as option!)
Automatic mould adjust unit: 0.5kw;
Work plate dimension: 1500*1000mm;
Mould handle hole dimension: 80*80mm(Diameter*Depth);
Power: 4P, 380/220V, 50/60Hz;
Net weight: 13,000kg.

SEAC-80AS is the four cavities or five cavities capacity model production line for AFC.
Complete automatic level upgrade your factory capacity, lead your company be higher level competition and situation.
FAQ
Q:Are you manufacturer? A:Silver Engineer established in 2007 and in leading place in Aluminum foil container industry. Q: Do you accept customized orders? A: Yes, you send your drawings, we provide you with excellent designed products. About any further detail, please feel free to contact us. Q: Is the aluminium foil container safe, any taste, clean? A: Yes, aluminum foil container high temperature 300 degrees, and be used in traditional Oven or Microwave oven.we use aluminum foil food grade aluminum foil, stable performance, non-toxic, safe and reliable. Q: Is the aluminum foil container easy to break ? A: Our aluminum foil container are well designed in structure, 20% of extra endurance compare to normal design. Q: Do you offer free samples? A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
